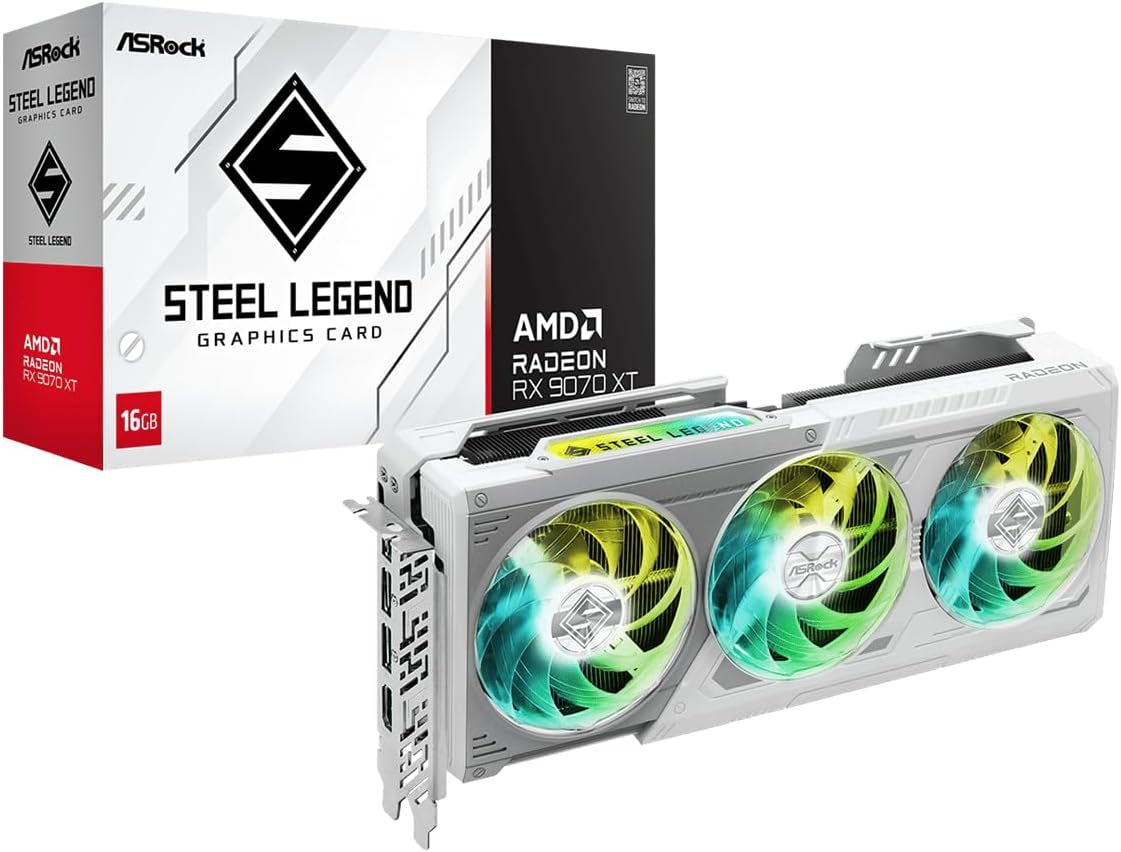

ASRock Radeon RX 9070 XT Steel Legend 16GB Graphics Card – AMD RDNA 4, 2970 MHz Boost, GDDR6, PCIe 5.0, Triple Fan, Polychrome SYNC

Original price was: $819.99.Current price is: $573.99.

SKU: 90-GA5DZZ-00UANF Category:
Description

Experience flagship RDNA 4 performance with the ASRock Radeon RX 9070 XT Steel Legend 16GB Graphics Card. Powered by the AMD Radeon RX 9070 XT GPU with 64 Compute Units featuring 3rd Gen Ray Tracing and 2nd Gen AI Accelerators, this card delivers uncompromising 4K gaming and AI-enhanced workloads.

Why Choose ASRock RX 9070 XT Steel Legend?

The 16GB of high-speed GDDR6 memory on a 256-bit memory bus running at 20 Gbps provides exceptional bandwidth for 4K textures, ray tracing, and professional content creation. Factory overclocked with a boost clock up to 2970 MHz and Game Clock at 2400 MHz, it delivers peak performance out of the box. The triple fan design with Striped Ring Fans, 0dB Silent Cooling, and a reinforced metal frame ensures optimal thermal performance and structural integrity.

Key Features

  • Flagship RDNA 4 Performance – AMD Radeon RX 9070 XT GPU with 64 Compute Units, 3rd Gen Ray Tracing, and 2nd Gen AI Accelerators. Delivers uncompromising 4K gaming and AI-enhanced workloads.

  • Generous 16GB GDDR6 VRAM – 16GB of high-speed GDDR6 memory on a 256-bit memory bus running at 20 Gbps. Exceptional bandwidth for 4K textures, ray tracing, and content creation.

  • Factory Overclocked – Boost clock up to 2970 MHz and Game Clock at 2400 MHz. Peak performance out of the box for demanding games and applications.

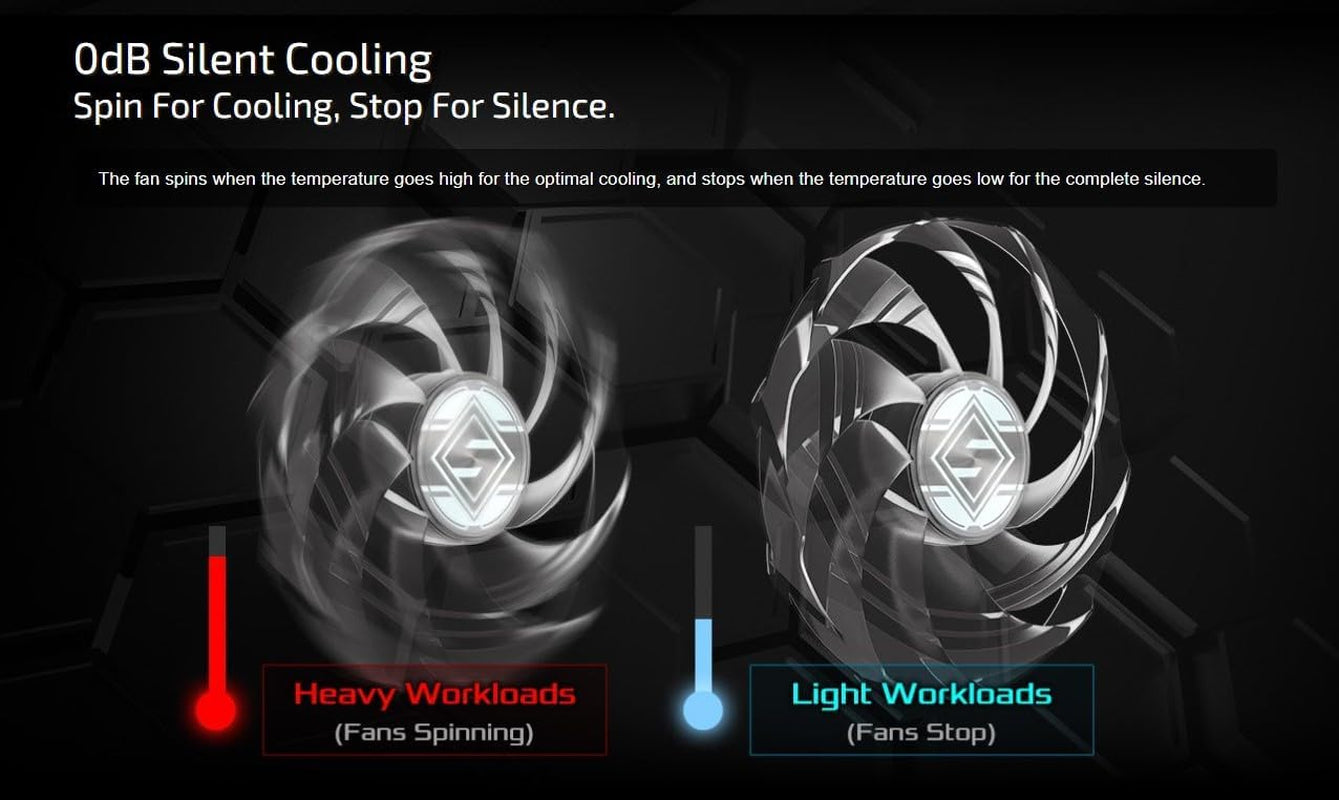

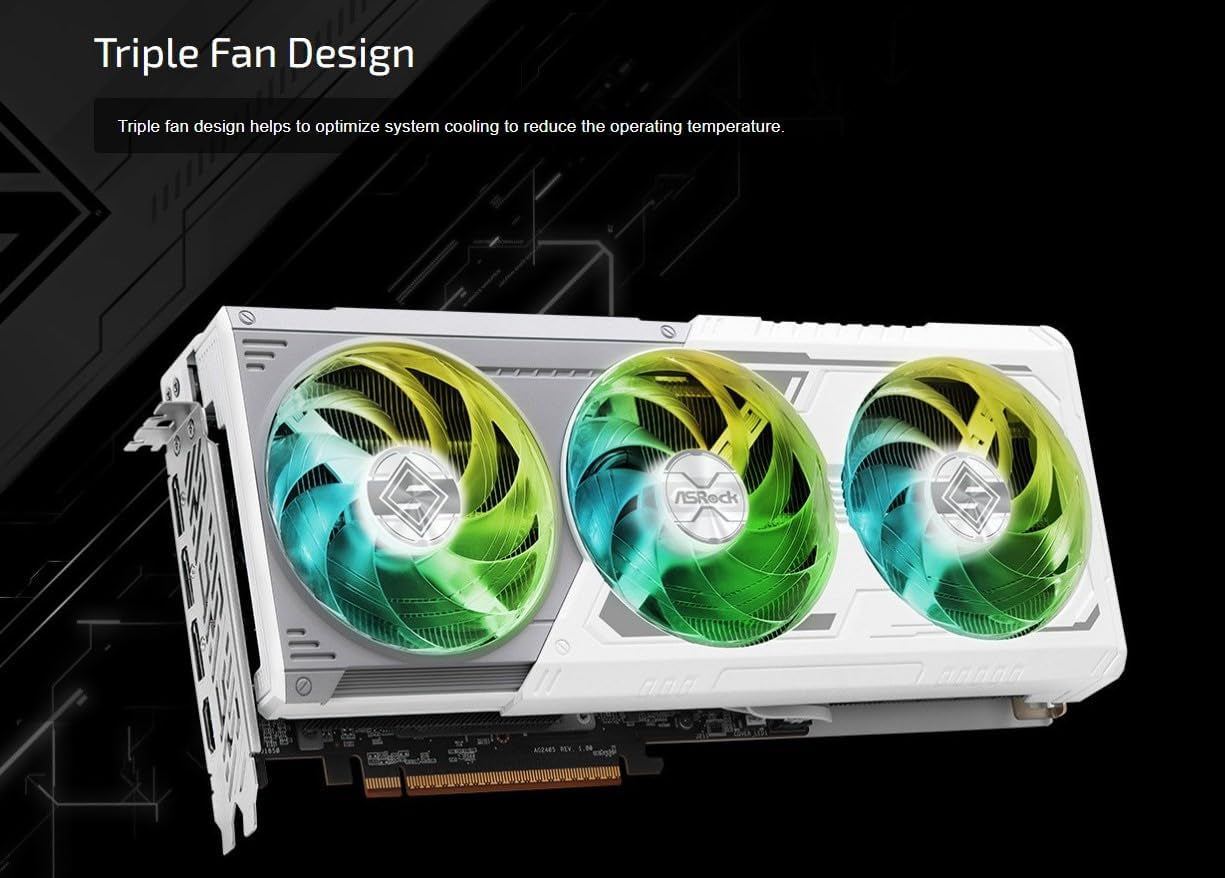

  • Triple Fan Design – ASRock’s Striped Ring Fan design provides more lateral intake and better airflow. 0dB Silent Cooling spins when hot and stops when cool for complete silence.

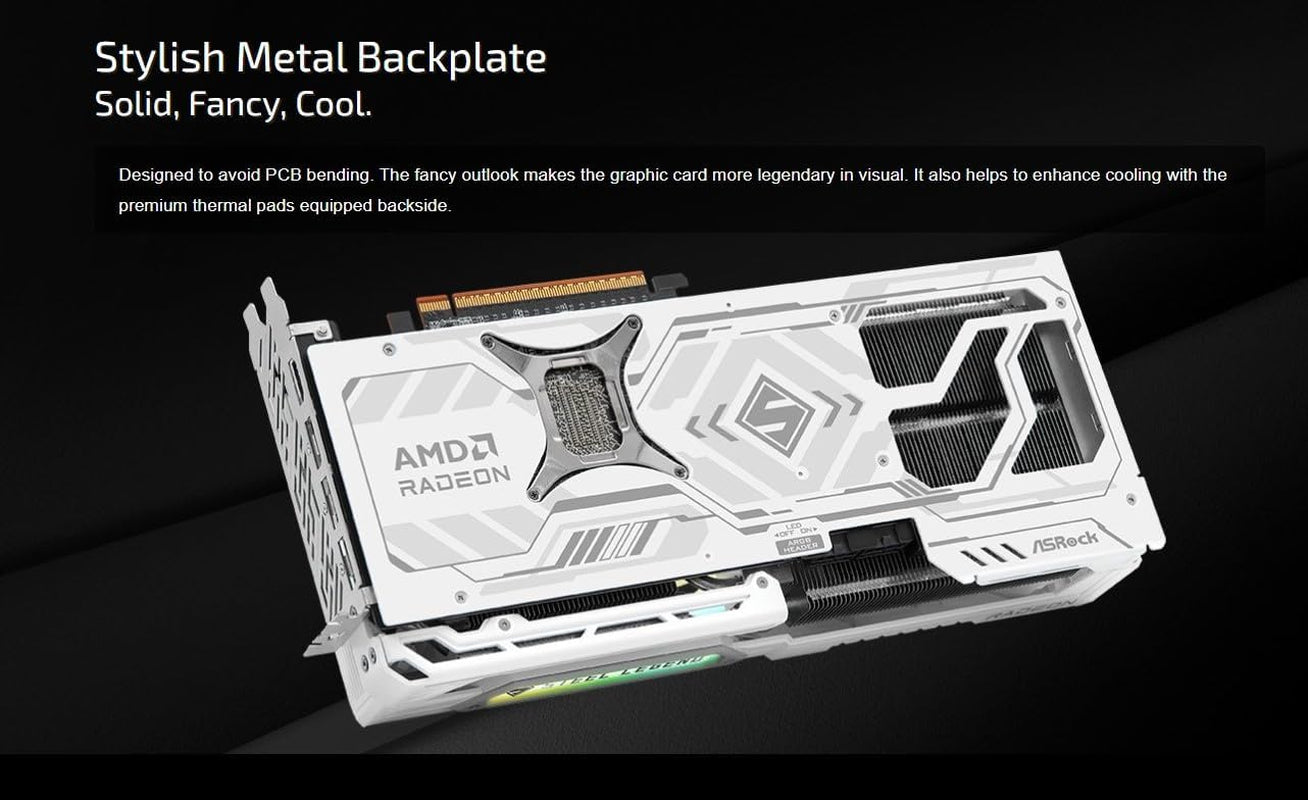

  • Reinforced Metal Frame & Stylish Metal Backplate – Enhanced structure prevents PCB bending. Metal backplate with thermal pads helps enhance cooling.

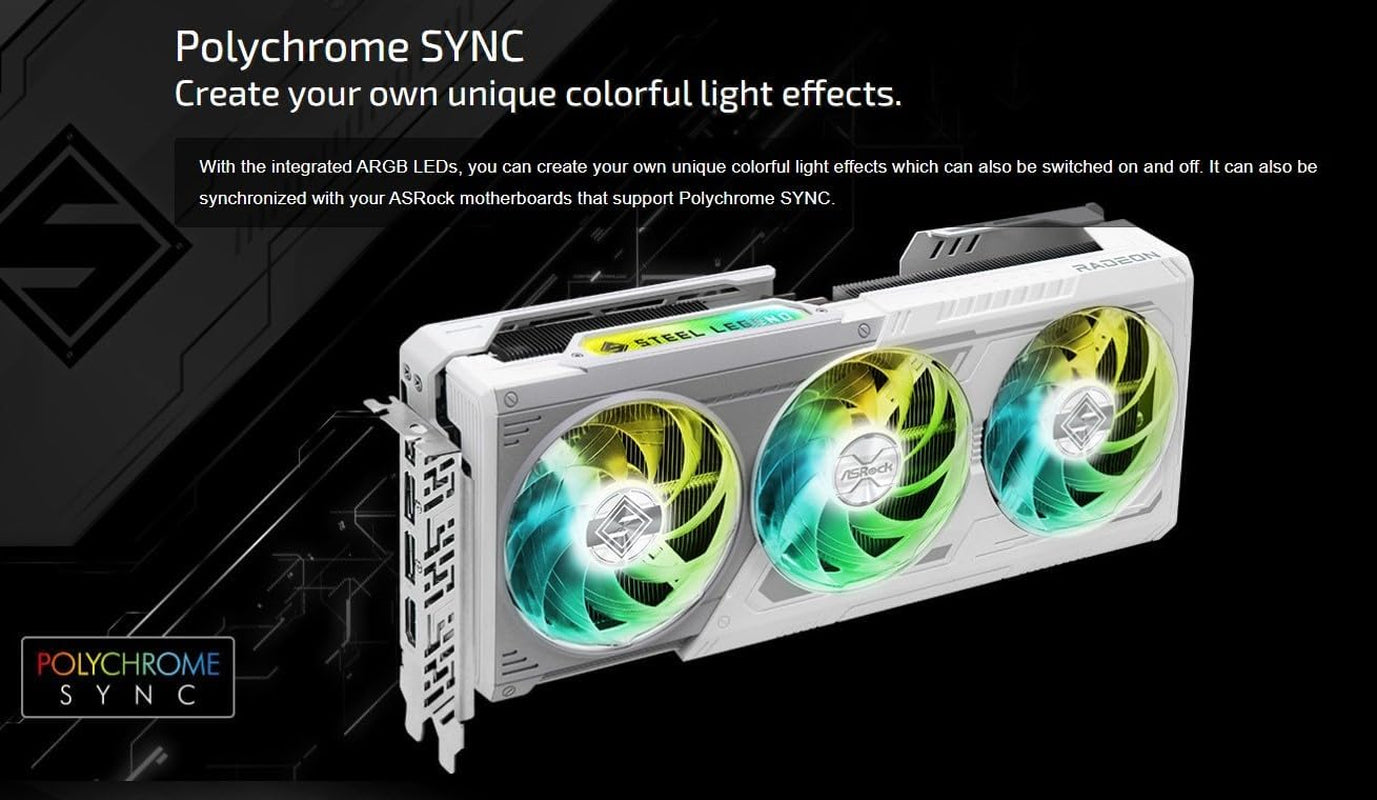

  • Polychrome SYNC RGB – Integrated ARGB LEDs create unique colorful light effects. Synchronizes with ASRock motherboards supporting Polychrome SYNC. LED switch for easy on/off control.

Specifications

Specification Details
Brand ASRock
Manufacturer ASRock
Model Number 90-GA5DZZ-00UANF
Manufacturer Part Number (MPN) 90-GA5DZZ-00UANF
GTIN 4711581490451
GPU AMD Radeon RX 9070 XT
GPU Chip Navi 48 XTX (RDNA 4)
Architecture AMD RDNA 4
Compute Units 64
Stream Processors 4096
Ray Accelerators 64
AI Accelerators 128
Boost Clock Up to 2970 MHz
Game Clock 2400 MHz
Base Clock 1660 MHz
Memory Size 16 GB
Memory Type GDDR6
Memory Interface 256-bit
Memory Speed 20 Gbps
Memory Bandwidth Up to 640 GB/s
AMD Infinity Cache 64 MB
Bus Type PCIe 5.0 x16

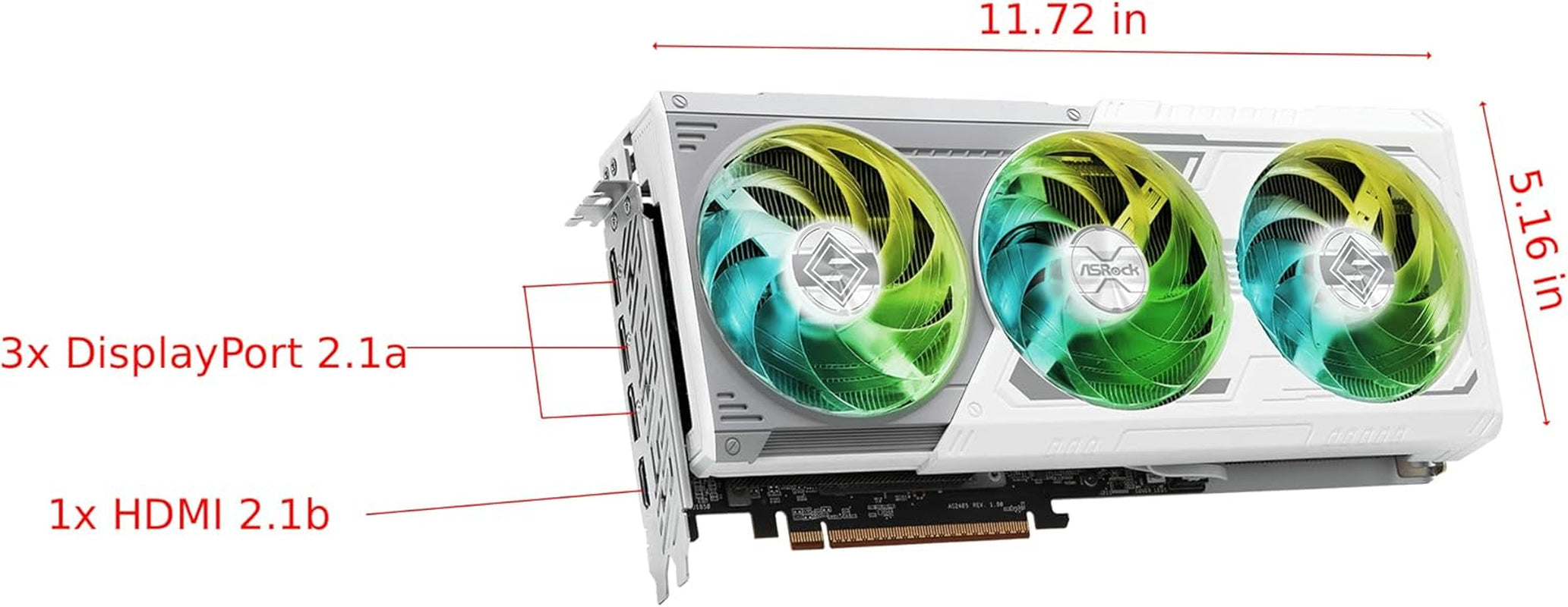

DisplayPort 3 x DisplayPort 2.1a
HDMI 1 x HDMI 2.1b
Max Resolution 7680 x 4320
Max Monitors 4
Slot Width 2.9-Slot (Triple Slot)
Dimensions (L x H x W) 298 x 131 x 58 mm
Net Weight 1155 g
Power Connector 2 x 8-Pin
Recommended PSU 800W
Typical Board Power 304W
DirectX Support 12 Ultimate
OpenGL Support 4.6
HDCP Support HDCP 2.3
Cooling Triple Fan, 0dB Silent Cooling
LED Addressable RGB, Polychrome SYNC
Warranty 2 Years Manufacturer
