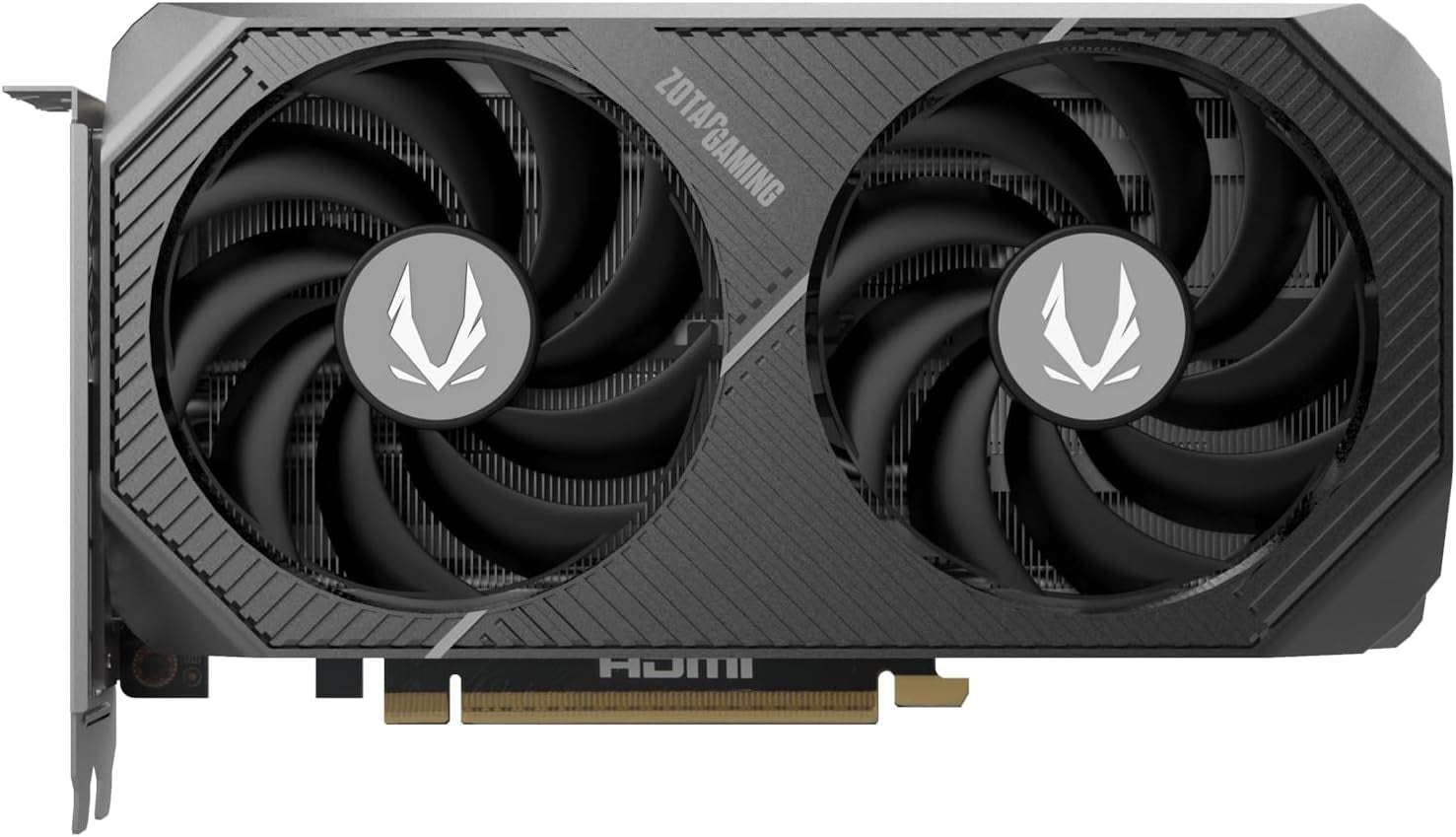

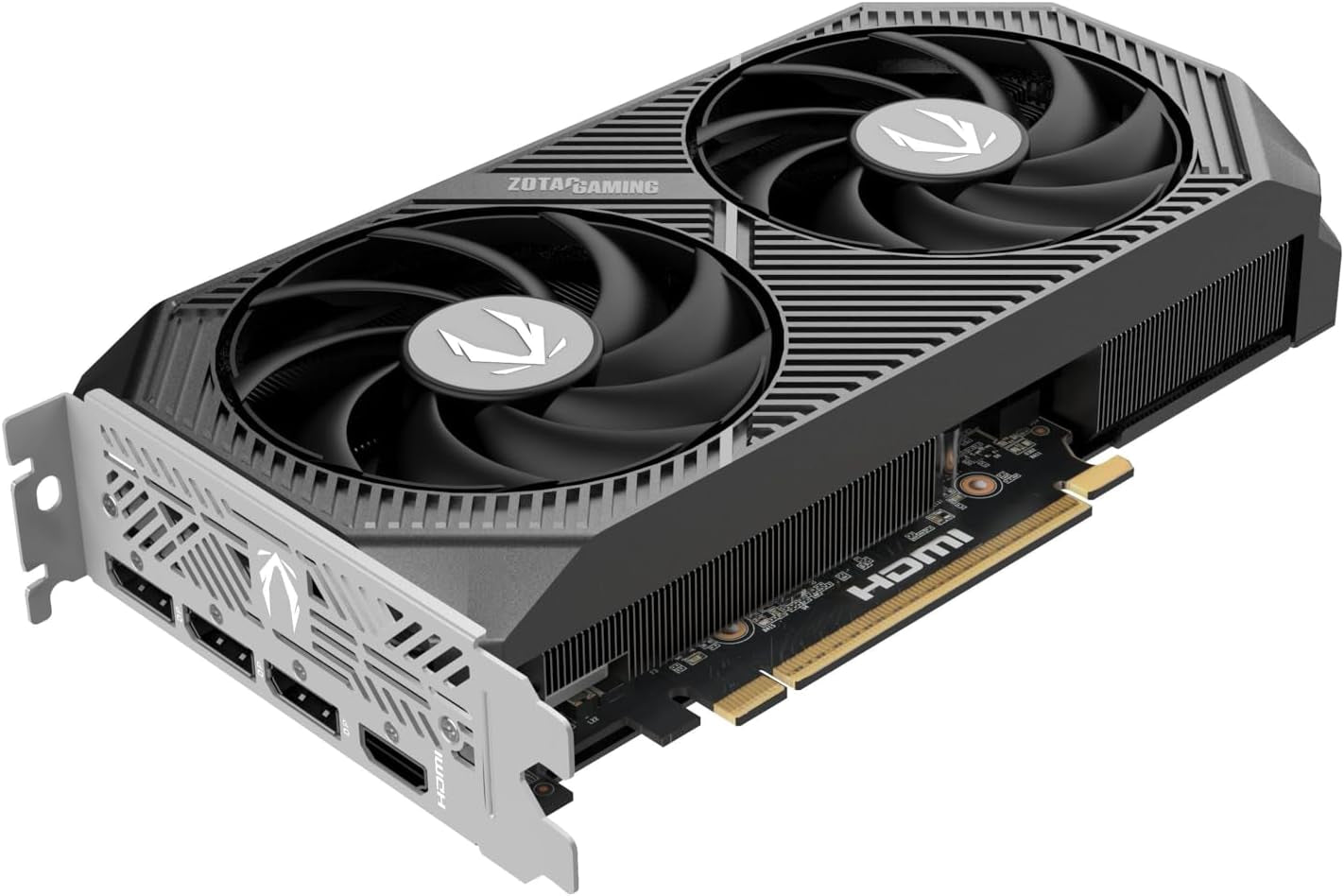

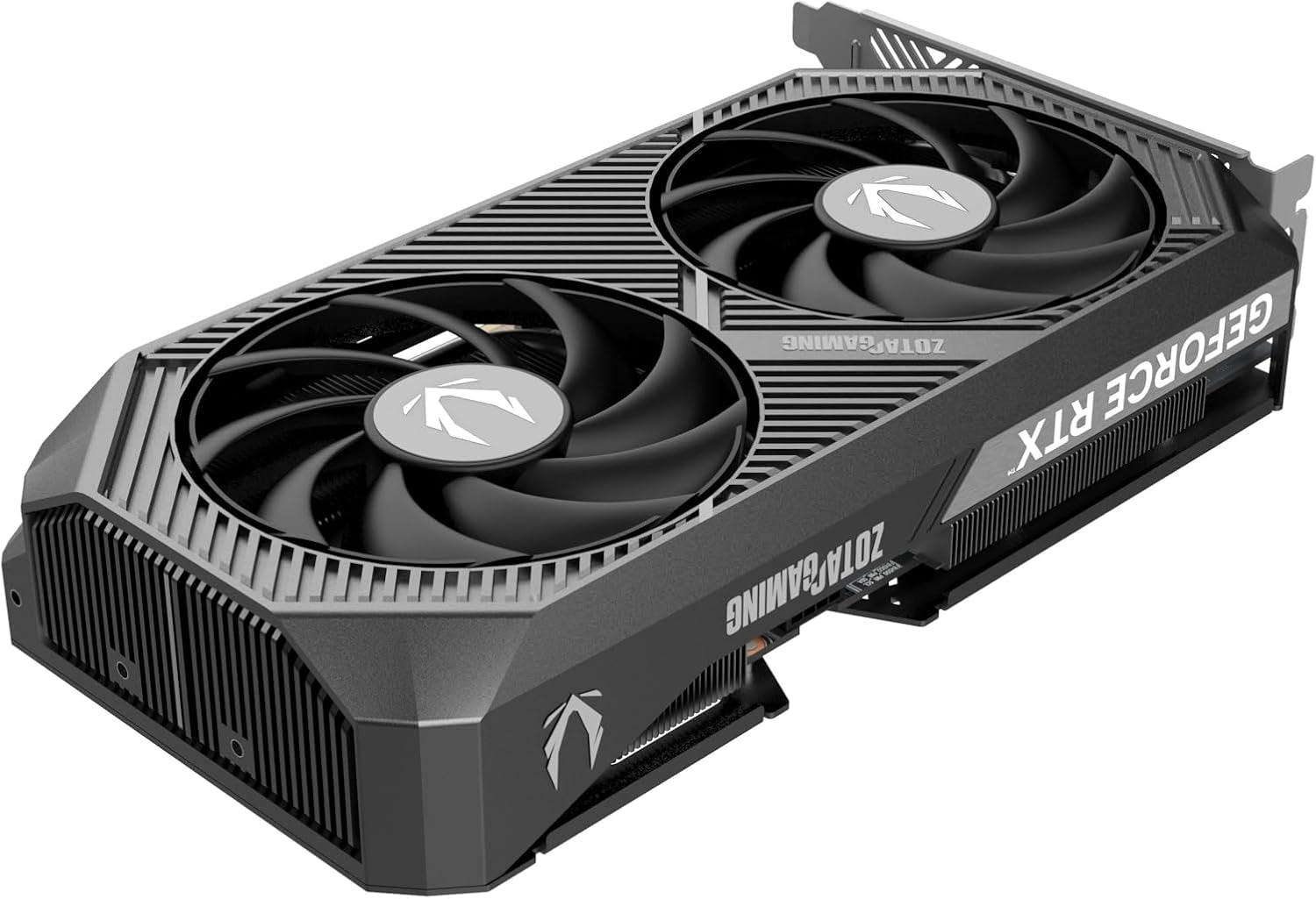

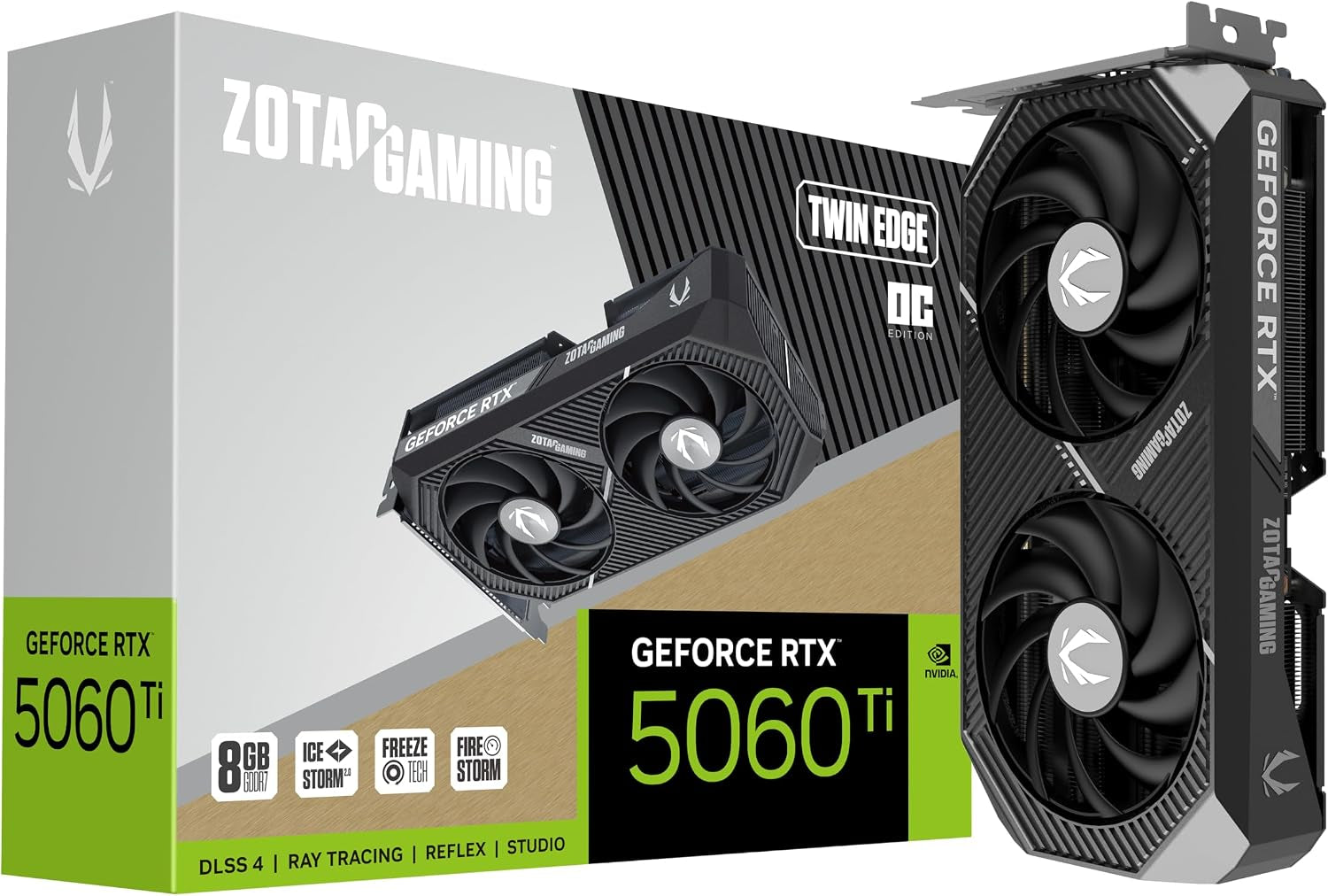

ZOTAC Gaming GeForce RTX 5060 Ti 8GB Twin Edge OC Graphics Card – 8GB GDDR7 with IceStorm 2.0 Cooling & SFF-Ready Design – ZT-B50610H-10A
Original price was: $519.99.$363.99Current price is: $363.99.
Experience next-generation gaming performance with the ZOTAC Gaming GeForce RTX 5060 Ti 8GB Twin Edge OC. Powered by the NVIDIA Blackwell architecture and DLSS 4, this SFF-ready compact card delivers stunning visuals and AI-accelerated performance for modern gaming. The IceStorm 2.0 cooling system with dual 90mm BladeLink fans and composite heatpipes ensures optimal thermal performance in a 2-slot form factor.
Why Choose the ZOTAC Gaming RTX 5060 Ti Twin Edge OC?
The ZOTAC Gaming series is built for gamers who want powerful performance in a compact build. The IceStorm 2.0 cooling system features dual 90mm BladeLink fans, composite heatpipes, and a pass-thru airflow design for efficient heat dissipation. With FREEZE Fan Stop technology, the fans halt completely under low loads for silent operation. The metal backplate provides structural rigidity and enhances cooling.
Key Features
-
Powered by NVIDIA Blackwell Architecture – Experience next-generation graphics with DLSS 4 for massive performance boosts.
-
SFF-Ready Compact Card – 2-slot design, 8.7″ length, perfect for small-form-factor builds.
-
8GB GDDR7 Memory on 128-Bit Interface – High-speed 28 Gbps memory provides ample bandwidth for modern game textures.
-
IceStorm 2.0 Cooling – Dual 90mm BladeLink fans, composite heatpipes, and pass-thru airflow design for optimal thermal performance.
-
FREEZE Fan Stop – Fans halt completely under low loads for silent operation.
-

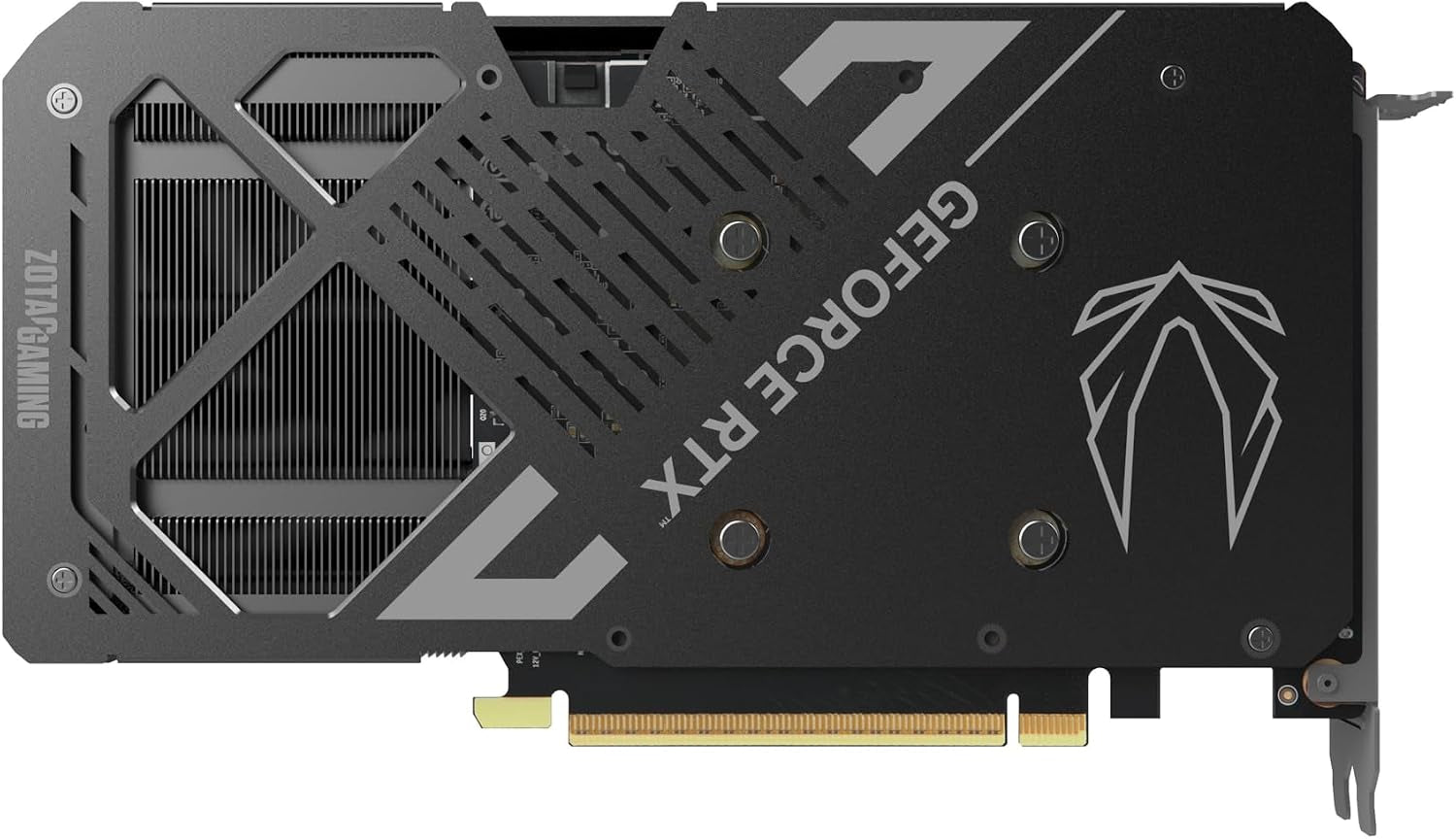

Metal Backplate – Provides structural rigidity and enhances cooling.
-
PCIe 5.0 Ready – Supports the latest PCI Express 5.0 standard for maximum bandwidth.
Specifications
| Specification | Details |
|---|---|
| Brand | ZOTAC |
| Model Name | ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge OC |
| Model Number (MPN) | ZT-B50610H-10A |
| GTIN / UPC | 810012086714 |
| Graphics Coprocessor | NVIDIA GeForce RTX 5060 Ti |
| GPU Architecture | NVIDIA Blackwell |
| Graphics RAM Size | 8 GB |
| Graphics RAM Type | GDDR7 |
| Memory Interface | 128-bit |
| Memory Clock Speed | 28 Gbps |
| GPU Clock Speed (Boost) | 2602 MHz |

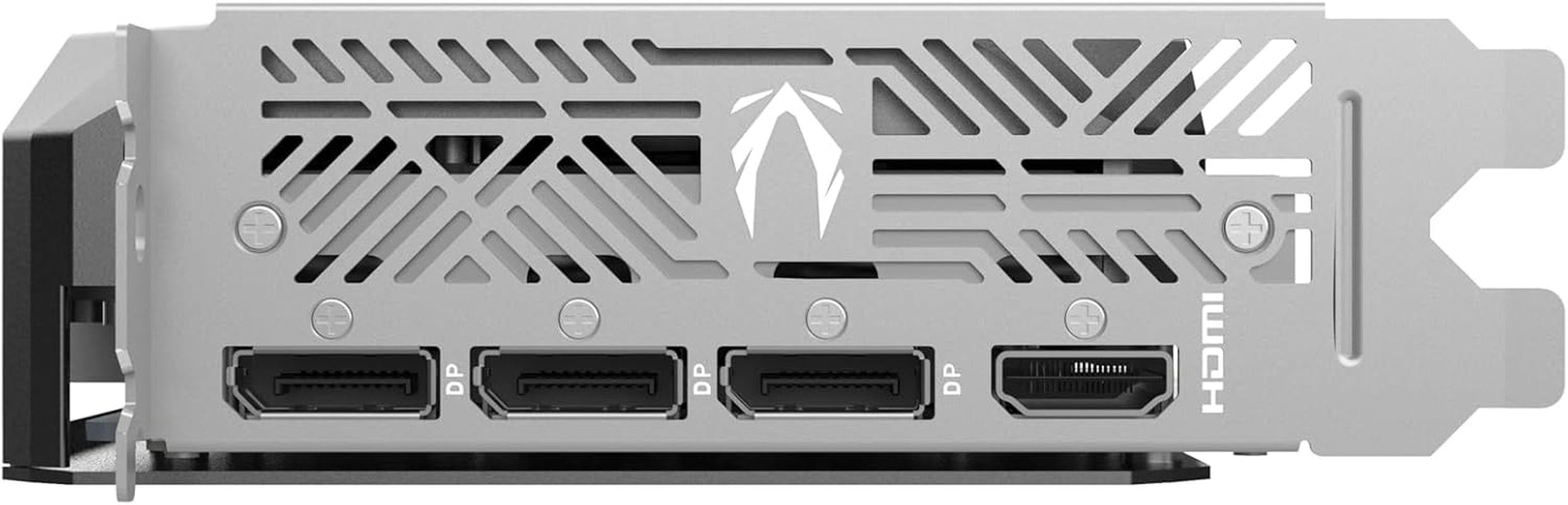

| Video Output Interface | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Graphics Card Interface | PCI-Express x8 (PCIe 5.0) |
| Number of Fans | 2 (90mm BladeLink) |
| Slot Width | 2-Slot |
| Display Maximum Resolution | 7680 x 4320 |
| Item Dimensions | 8.7″L x 1.6″W |
| Warranty | 3-Year Manufacturer Warranty |
